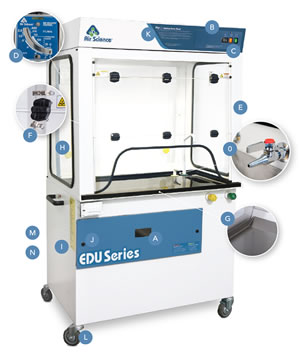

EDU Ductless Classroom Demonstration Fume Hoods
A. Filter I.D. Window: A convenient, strategically placed front cover window shows the installed filter part number and installation date to encourage timely filter replacement.
B. Control Panel: Electronic controls and displays include switches for the blower and low airflow alarm.
C. Airflow Alarm: Low airflow alarm continuously monitors filter loading and alerts used when service is needed.
D. Air Velometer: An analog air velocity meter is positioned in the user’s field of vision.
E. Steel Support Frame: The chemical resistant epoxy coated steel frame adds mechanical strength. Optional all polypropylene construction is available if desired; see accessories.
F. Hinged Front Sash: When closed, the cabinet sash protects the contents from inadvertent external contact and better isolates the air within. The sash is easy to open and close.
G. Work Surface: The internal work surface is fitted with a standard polypropylene spill tray (available in white and black). An optional stainless steel tray is also available; see accessories.
H. Pass Through Ports: Electrical cords and cables are safely routed into the cabinet through ports on the back.
I. Electrostatic Pre-Filter: The electrostatic pre-filter is accessible from inside the chamber and 91% effective down to 1-3 microns.
J. Filter Door Key: Filter access keys prevent unauthorized removal or accidental exposure to dirty filters.
K. Internal Manual Speed Controller: Authorized personnel set the centrifugal fan motor speed as desired.
L. Locking Casters: Permit complete portability from lab to lab. The overall width and height are sized to fit easily through standard doorways.
M. Isolated Single Switch Electrical Sockets: 13 amp
N. Quick Release Connections: For water, waste, and gas.
O. Optional petcocks are available for gas and water. An optional gooseneck faucet is positioned over an optional chemically-resistant polypropylene sink cup integrated into the work surface.
